Solidremote 2-Channel Wireless Relay Switch Kit (12V-24V AC/DC) - Universal RF Receiver & 2-Keyfob Remote for Garage Doors, LEDs, and Automation

View details

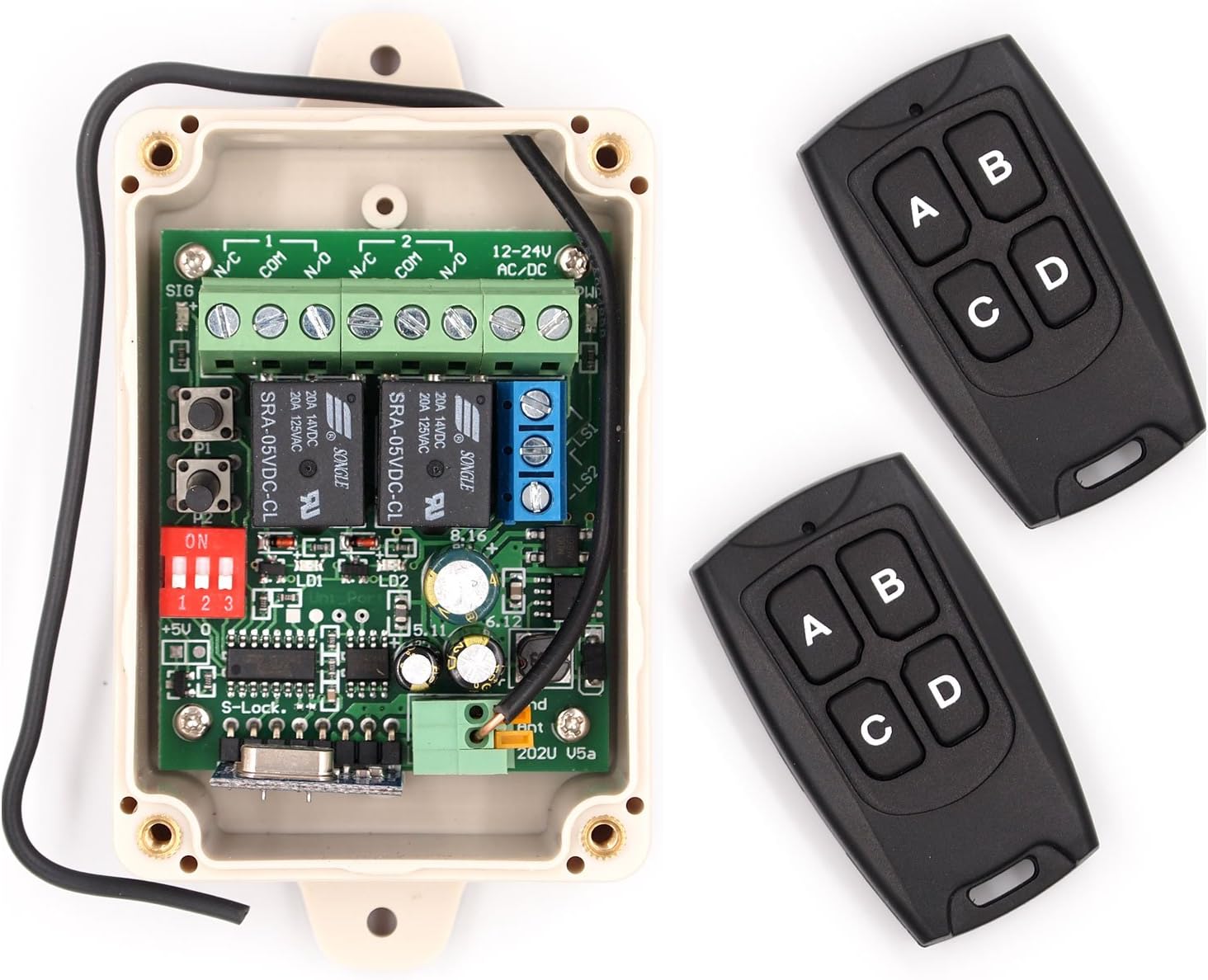

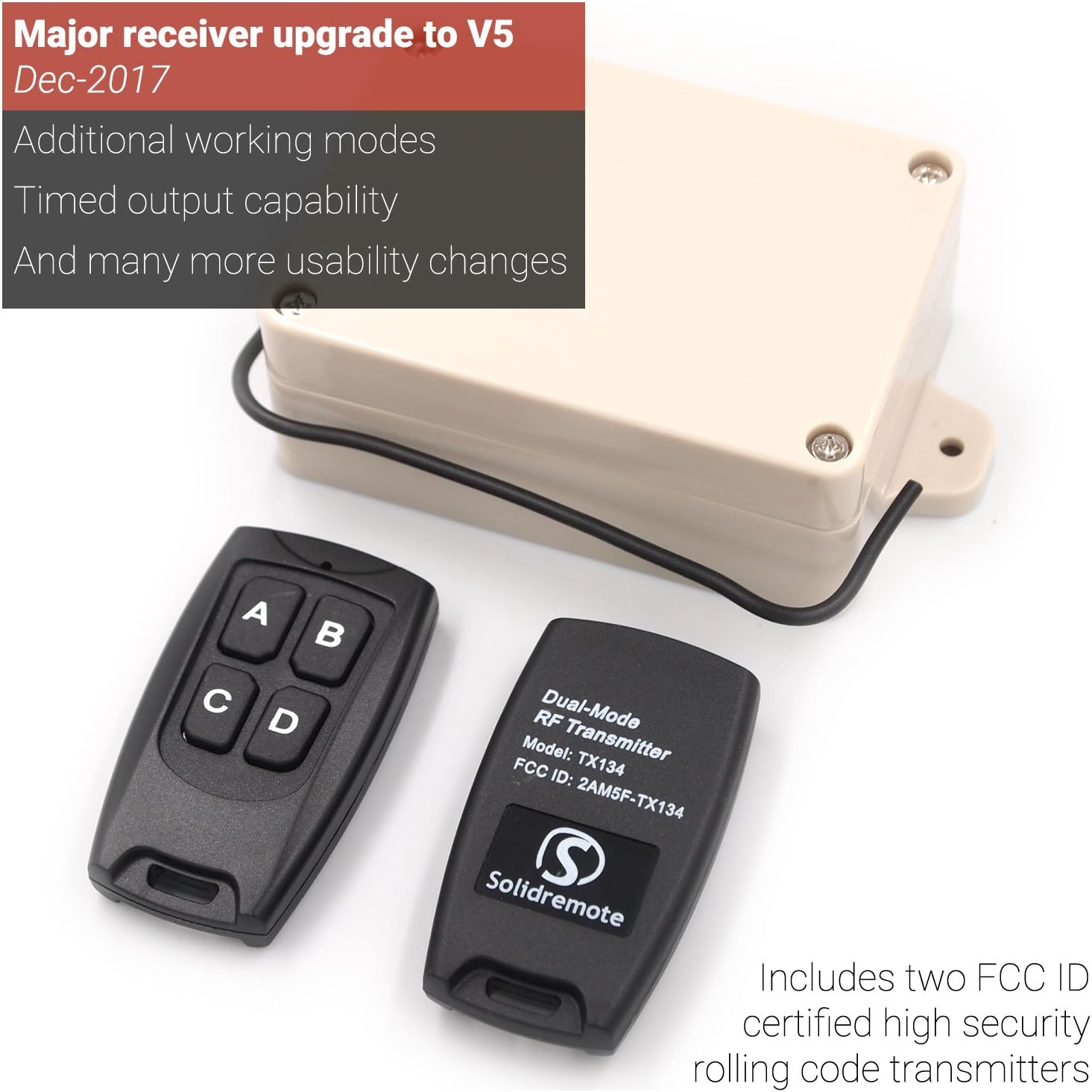

Solidremote 2-Channel Wireless Relay Switch Kit (12V-24V AC/DC) – Universal RF Receiver & 2-Keyfob Remote for Garage Doors, LEDs, and Automation

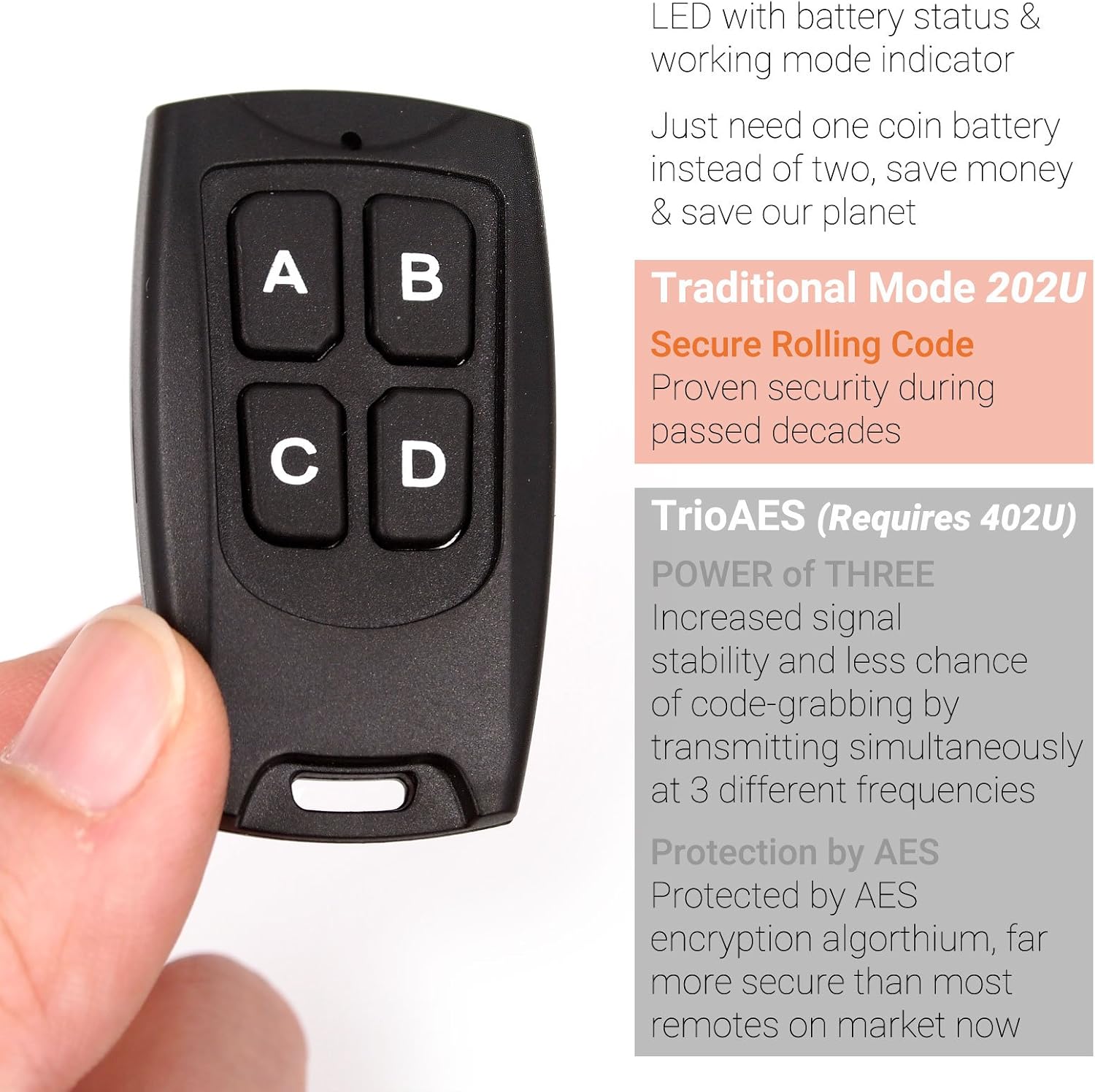

ADVANCED SECURITY: Features secure rolling code technology with over 18 quintillion combinations, preventing code copying and ensuring enhanced protection compared to fixed-code remotes.
FLEXIBLE PROGRAMMING: Two independent relay channels support Pulse, Toggle, and Latching modes. Easy configuration via DIP switches for motor reversing or dual-device control.
LONG RANGE & STABLE: Equipped with a high-sensitivity -113dBm superheterodyne module for superior signal reception and extended wireless range.
WIDE VOLTAGE SUPPORT: Accepts 12V-24V AC or DC power supply. Features IP55-equivalent waterproof housing when sealed, suitable for indoor and outdoor use.
HEAVY DUTY CAPACITY: Each relay switches up to 10A @14V DC or 125V AC. Ideal for garage doors, LED lights, winches, pumps, and automotive actuators.

Category: Others

Product Description

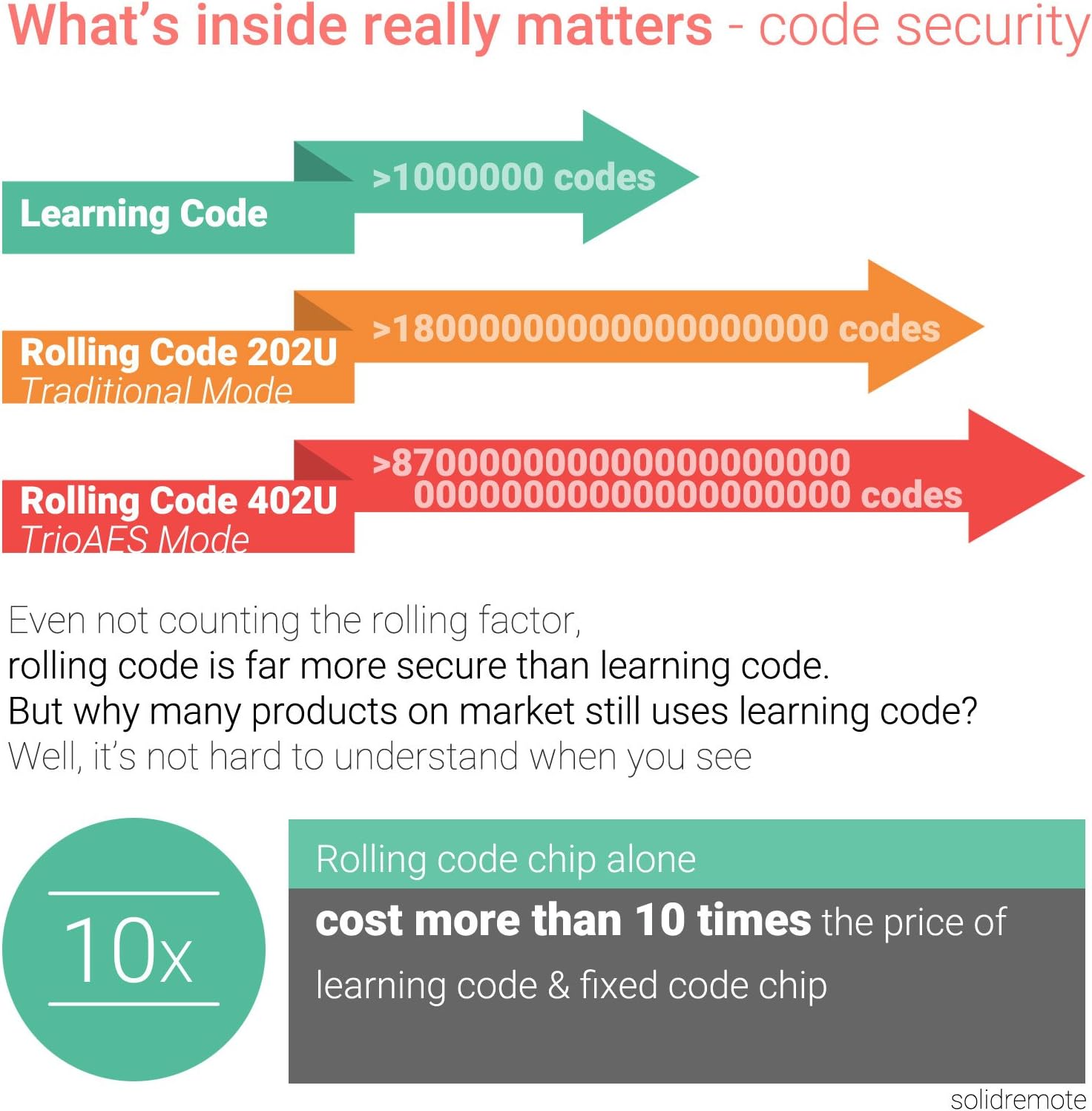

Secure Your Property with Advanced Rolling Code Technology: Upgrade your access control with the Solidremote 2-Channel Universal Wireless Relay Switch Kit. Designed for superior security, this system utilizes advanced rolling code technology, generating over 18 quintillion unique combinations to eliminate the risk of code grabbing and duplication found in older fixed-code systems. Coupled with a high-sensitivity -113dBm superheterodyne receiver, this unit ensures stable, long-range operation even in challenging environments.

Versatile 2-Channel Control: Experience unmatched flexibility with two independent relays that can be programmed for pulse (momentary), toggle (hold), or latching modes. This allows you to control two separate devices independently (e.g., a garage door and entry lights) or use them together in an interlocking latching mode for polarity-reversing applications, such as controlling DC motors or solenoids. Programming is effortless via the onboard DIP switches, eliminating the need for complex software setup.

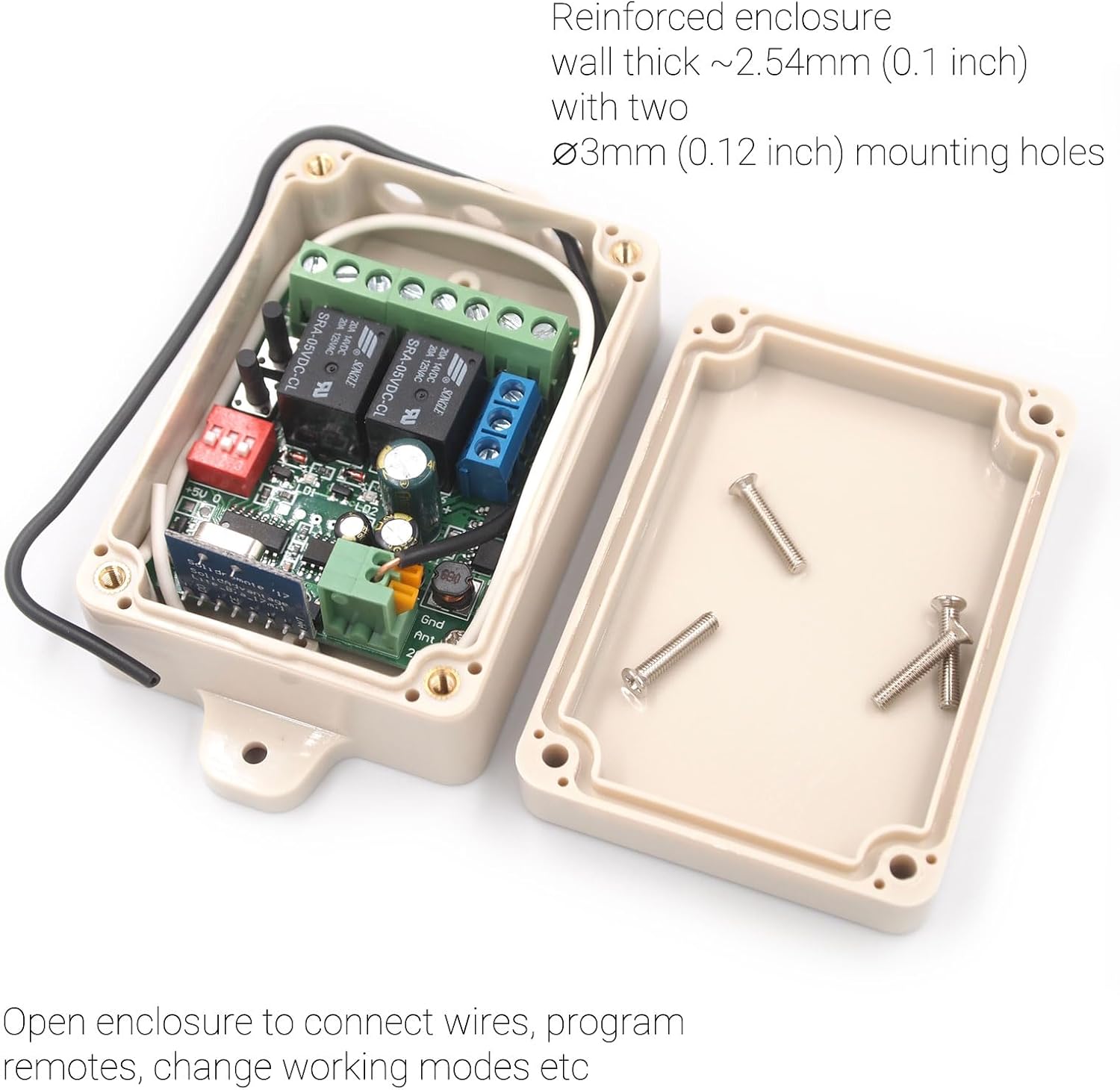

Robust Weatherproof Design: Built to withstand the elements, the receiver comes housed in a durable protective enclosure with mounting holes for easy installation. For outdoor use, the wiring holes can be sealed with standard chemical glue or epoxy adhesive, providing an IP55-equivalent waterproof rating. This makes the unit perfect for outdoor gates, boat lifts, or agricultural equipment.

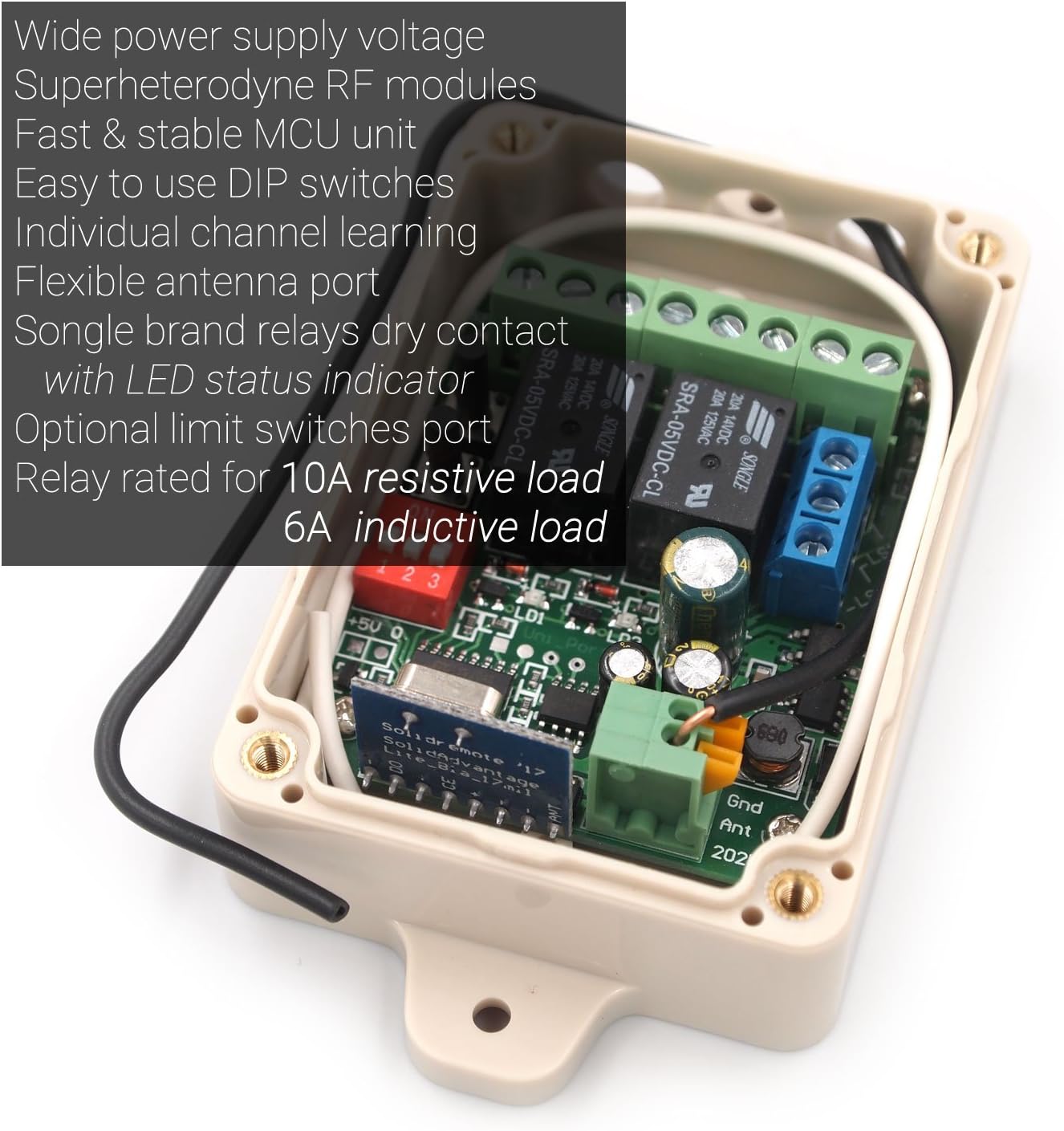

High-Power Performance: Engineered for reliability, the receiver features a robust 3-level efficient switching power supply that accepts a wide voltage range of 12V-24V AC or DC. Each heavy-duty relay is capable of switching up to 10A at 14V DC or 125V AC for resistive loads, making it suitable for a wide array of high-demand applications.

Universal Applications: This universal wireless switch kit is the perfect solution for a vast range of automation projects, including:
